2 OOP Basic

2.1 Inheritance

Dart Example

// Abstract superclass Animal
abstract class Animal {
  // Properties
  String name;
  String sex;
  int age;
  double weight;
  String color;

  // Constructor
  Animal({
    required this.name,
    required this.sex,
    required this.age,
    required this.weight,
    required this.color,
  });

  // Methods
  void breathe() {
    print('$name is breathing');
  }

  void eat(String food) {
    print('$name is eating $food');
  }

  void run(String destination) {
    print('$name is running to $destination');
  }

  void sleep(int hours) {
    print('$name is sleeping for $hours hours');
  }
}

// Cat subclass extending Animal
class Cat extends Animal {
  // Cat-specific property
  bool isNasty;

  // Constructor
  Cat({
    required String name,
    required String sex,
    required int age,
    required double weight,
    required String color,
    this.isNasty = false,
  }) : super(
          name: name,
          sex: sex,
          age: age,
          weight: weight,
          color: color,
        );

  // Cat-specific method
  void meow() {
    print('$name says: Meow!');
  }
}

// Dog subclass extending Animal
class Dog extends Animal {
  // Dog-specific property
  String bestFriend;

  // Constructor
  Dog({
    required String name,
    required String sex,
    required int age,
    required double weight,
    required String color,
    this.bestFriend = 'Human',
  }) : super(
          name: name,
          sex: sex,
          age: age,
          weight: weight,
          color: color,
        );

  // Dog-specific method
  void bark() {
    print('$name says: Woof!');
  }
}

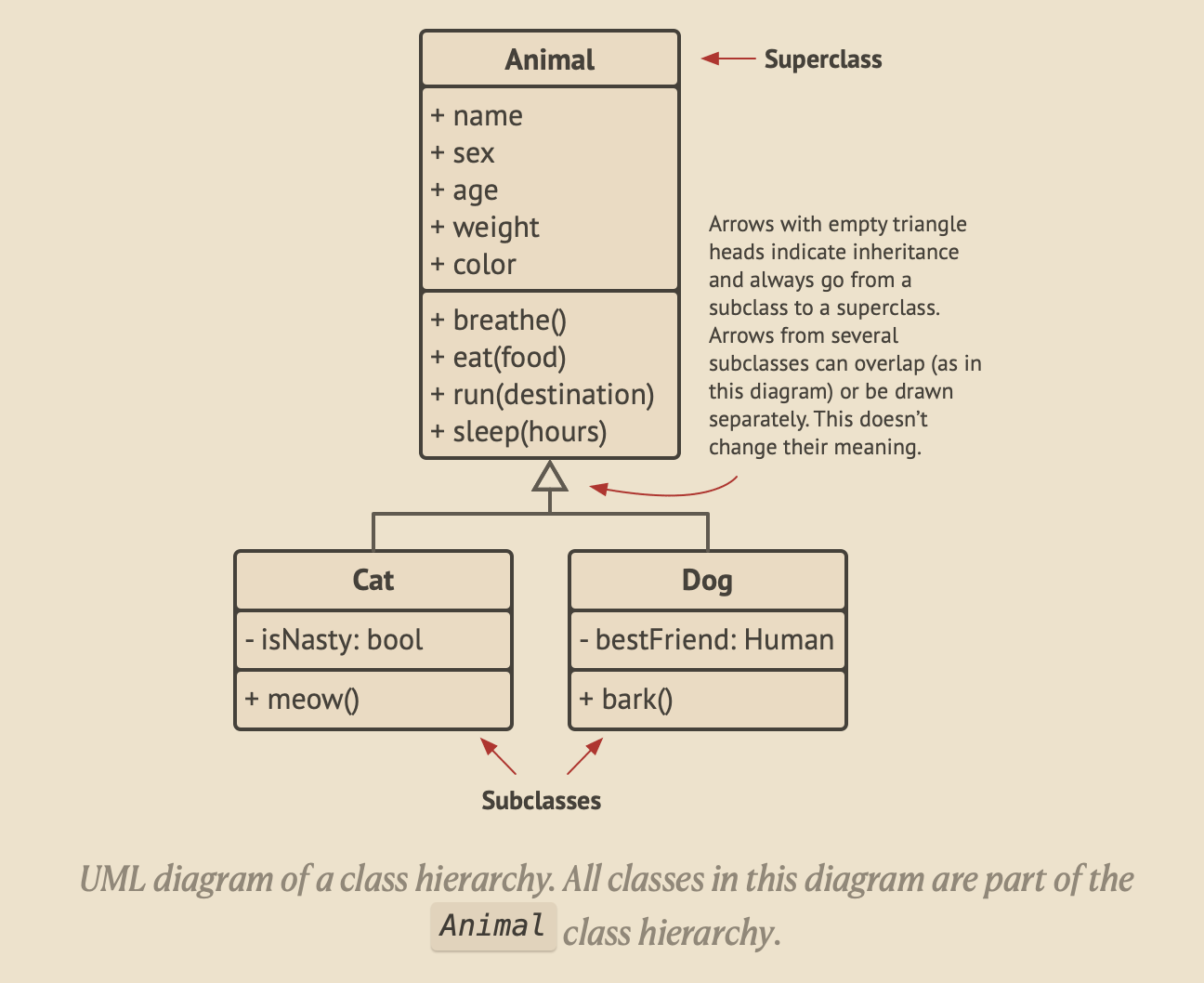

Inheritance Pattern: The Cat and Dog classes inherit from the Animal superclass, demonstrating the “is-a” relationship.
Abstract Class: I made Animal an abstract class since in the real world, you don’t instantiate a generic “animal” - you create specific types like cats or dogs.
Key Implementation Details:
- The superclass Animal contains shared properties (name, sex, age, weight, color) and methods (breathe, eat, run, sleep)
- Each subclass has its own specific properties:
  - Cat has isNasty (boolean)
  - Dog has bestFriend (String, defaulting to “Human”)
- Each subclass has its own specific methods:
  - Cat has meow()
  - Dog has bark()
Constructor Chaining: Both subclasses use the super constructor to initialize inherited properties from the Animal class.

This implementation demonstrates the Template Method Pattern implicitly - the superclass defines the structure and common behaviors, while subclasses can add their specific implementations and properties.

The example usage in the main() function shows how both cats and dogs can use inherited methods (breathe, eat, run, sleep) while also having their unique behaviors (meow, bark) and properties.

2.2 Interface

Example Dart

// Interface definition (abstract class in Dart)
abstract class FlyingTransport {
  // Interface method that must be implemented
  void fly(String origin, String destination, int passengers);
}

// Helicopter class implementing FlyingTransport interface
class Helicopter implements FlyingTransport {
  String model;
  int maxAltitude;

  Helicopter({required this.model, this.maxAltitude = 15000});

  @override
  void fly(String origin, String destination, int passengers) {
    print('Helicopter $model is flying from $origin to $destination');
    print('Carrying $passengers passengers');
    print('Flying at low altitude with vertical takeoff capability');
  }
}

// Airplane class implementing FlyingTransport interface
class Airplane implements FlyingTransport {
  String airline;
  String flightNumber;

  Airplane({required this.airline, required this.flightNumber});

  @override
  void fly(String origin, String destination, int passengers) {
    print('$airline Flight $flightNumber is flying from $origin to $destination');
    print('Carrying $passengers passengers');
    print('Cruising at high altitude on established flight path');
  }
}

// DomesticatedGryphon class implementing FlyingTransport interface
class DomesticatedGryphon implements FlyingTransport {
  String name;
  int wingspan;

  DomesticatedGryphon({required this.name, this.wingspan = 20});

  @override
  void fly(String origin, String destination, int passengers) {
    print('$name the Gryphon is flying from $origin to $destination');
    print('Carrying $passengers brave passengers on its back');
    print('Soaring majestically through the clouds');
  }
}

// Airport class that uses FlyingTransport interface
class Airport {
  String name;
  String code;
  List<FlyingTransport> scheduledFlights = [];

  Airport({required this.name, required this.code});

  // Accept method that takes any FlyingTransport implementation
  void accept(FlyingTransport vehicle) {
    print('\n--- $name Airport ($code) ---');
    print('Accepting flying transport for departure');
    scheduledFlights.add(vehicle);

    // Airport can work with any FlyingTransport without knowing specific type
    vehicle.fly(code, 'DEST', 50);
    print('Transport successfully departed from $name\n');
  }

  // Additional airport operations
  void displaySchedule() {
    print('Total scheduled flights: ${scheduledFlights.length}');
  }
}

// Example usage demonstrating the pattern
void main() {
  // Create an airport
  var jfkAirport = Airport(name: 'John F. Kennedy International', code: 'JFK');

  // Create different flying transports
  var helicopter = Helicopter(model: 'Bell 429');
  var airplane = Airplane(airline: 'Delta', flightNumber: 'DL123');
  var gryphon = DomesticatedGryphon(name: 'Goldwing', wingspan: 25);

  // Airport accepts any FlyingTransport
  // This demonstrates polymorphism through interfaces
  jfkAirport.accept(helicopter);
  jfkAirport.accept(airplane);
  jfkAirport.accept(gryphon);

  // Display total scheduled flights
  jfkAirport.displaySchedule();

  // Demonstrate that all types can be treated as FlyingTransport
  print('\n--- Direct Interface Usage ---');
  List<FlyingTransport> vehicles = [
    Helicopter(model: 'Apache AH-64'),
    Airplane(airline: 'United', flightNumber: 'UA456'),
    DomesticatedGryphon(name: 'Stormfeather')
  ];

  for (var vehicle in vehicles) {
    vehicle.fly('LAX', 'ORD', 30);
    print('');
  }
}

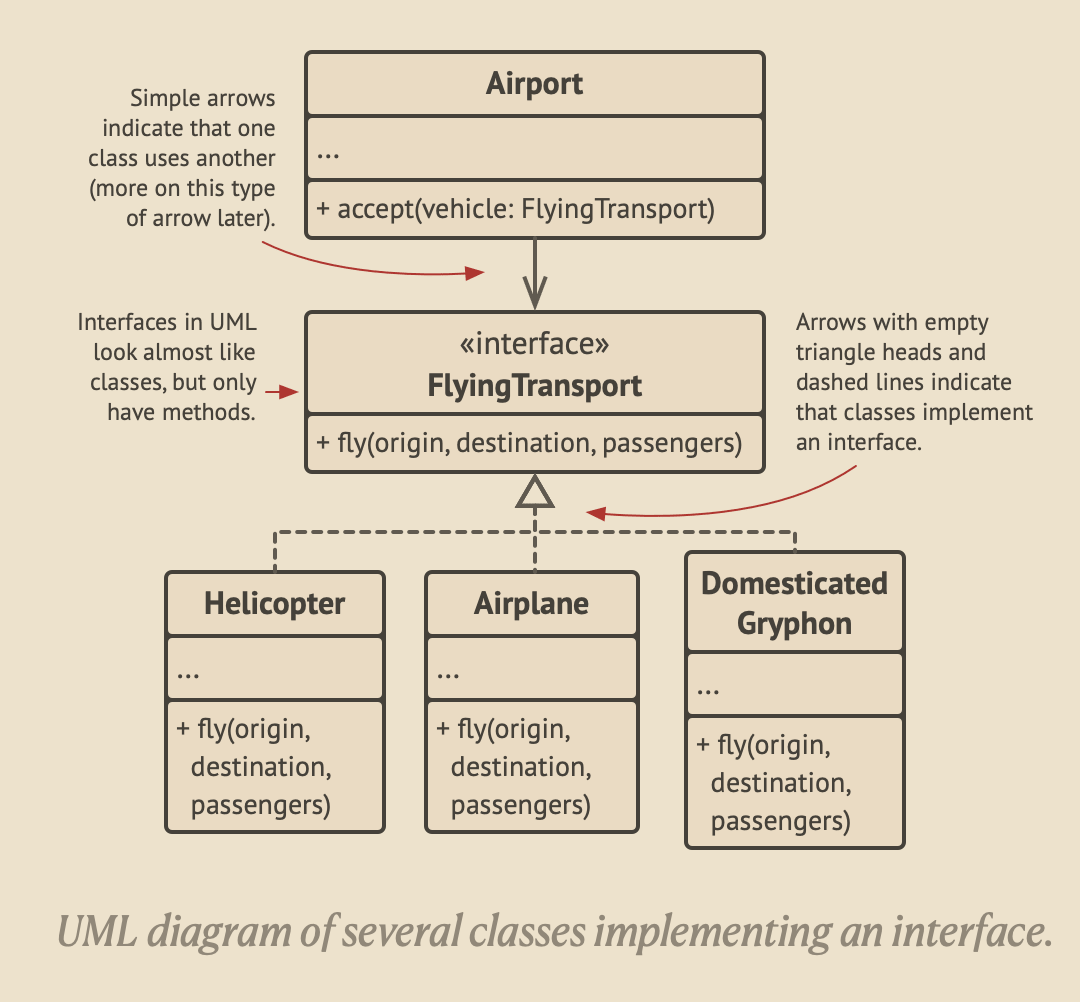

I’ll implement this UML diagram in Dart, demonstrating the Interface pattern where multiple classes implement a common interface.I’ve implemented the UML diagram demonstrating the Interface Pattern with these key design elements:

Interface Definition:
- FlyingTransport is defined as an abstract class (Dart’s way of creating interfaces)
- It declares the fly() method that all implementers must provide
Multiple Implementations:
- Helicopter, Airplane, and DomesticatedGryphon all implement the FlyingTransport interface
- Each provides its own unique implementation of the fly() method
Dependency Inversion Principle:
- The Airport class depends on the FlyingTransport interface, not concrete implementations
- The accept() method can work with any flying transport without knowing its specific type
Key Benefits Demonstrated:
- Polymorphism: Different flying vehicles can be treated uniformly through the interface
- Loose Coupling: Airport doesn’t need to know about specific vehicle types
- Extensibility: New flying transports can be added without modifying Airport
Design Pattern Usage:
- This implements the Strategy Pattern where different flying behaviors are encapsulated
- Also demonstrates Dependency Injection as Airport accepts any FlyingTransport

The example shows how an airport can accept helicopters, airplanes, and even mythical creatures like gryphons, as long as they implement the FlyingTransport interface. This makes the system flexible and extensible.
